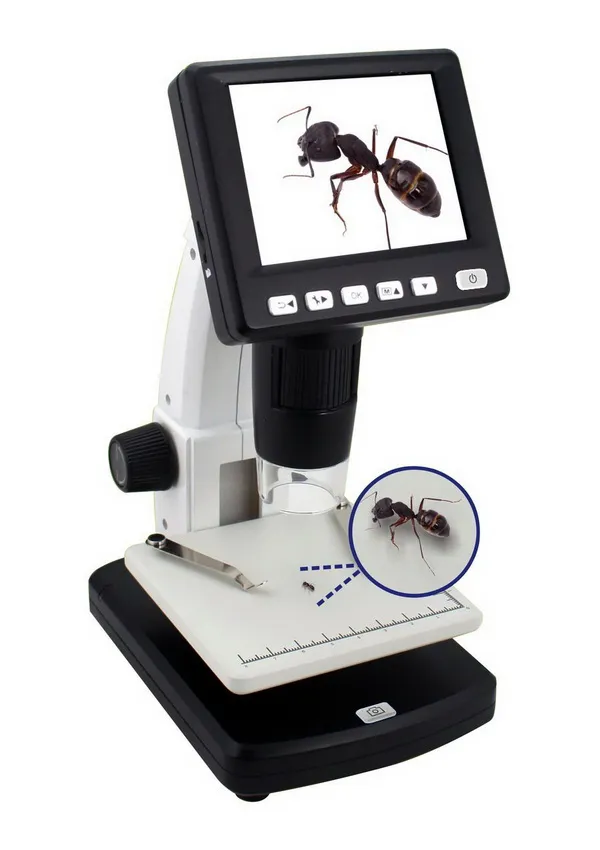

3.5-inch Standalone 1200x 5M LCD Digital Microscope with Photo/Video Measurement
Model No: UM038
* 3.5" LCD Display
* 5M pixels image sensor
* Professional microscopic lens
* 300x magnification, up to 1200x by digital
* 8 LEDs with brightness adjustable
* Battery powered, Portable and  Standalone
* Measurement function
* TV-out to any monitor with TV-in
The 3.5" Standalone LCD Digital Microscope is a fantastic microscope that provides a good way for you to share high definition microscopic observation with others. The 3.5" quality LCD panel brings vivid crystal image.

Equipped with professional microscopic lens, it helps you to see tiny objects easily. With 300x optical and 4x digital zoom, the magnification can be up to 1200x. 1050mAh rechargeable li-ion battery provides a 2.5-3 hours standalone working time. The 8 bright LEDs, with brightness adjustable, is bright enough for perfect observation. More exciting is the professional measurement software can help to measure size as small as 0.001mm, which is extremely helpful to your scientific researches.

With this microscope, you can enjoy your researches, or share them with your friends. It is especially helpful and affordable for youngsters to do some basic researches both at home and school.

Video:
https://www.youtube.com/watch?v=edgycu6bubw

* 3.5" LCD Display

* 5M pixels image sensor

* Professional microscopic lens

* 300x magnification, up to 1200x by digital

* 8 LEDs with brightness adjustable

* Battery powered, Portable and  Standalone

* Measurement function

* TV-out to any monitor with TV-in
* Image Sensor: 5 Mega Pixels (true resolution)

* LCD Panel: 3.5inches

* Still capture resolution: 12M, 9M, 5M, 3M, 1.3M, VGA

* Video capture resolution: 12M, 9M, 5M, 3M, 1.3M, VGA

* Focus Range: Manual focus from 10mm to 50mm

* Frame Rate: Max 30f/s under 600 Lus Brightness

* Magnification Ratio: up to 1200x

* TV output: Available (to any monitor with TV in)

* Card Slot: Support MicroSD Card slot up to 32GB SDHC

* Light source: 8 LED (adjustable by control wheel)

* Battery: Rechargeable lithium battery (recharged by adaptor or USB)

* Measurement:
  By software (PortableCaputure with OSD language: English, German, Spanish, French, Russian)

* OSD language: English, German, Spanish, French, Russian

* Bundle software: PortableCapture with measurement

* Product Size: L149 * W104 * H227 mm

* Weight: 1100g

* Certificates: With CE, FCC approval, RoHS compliance

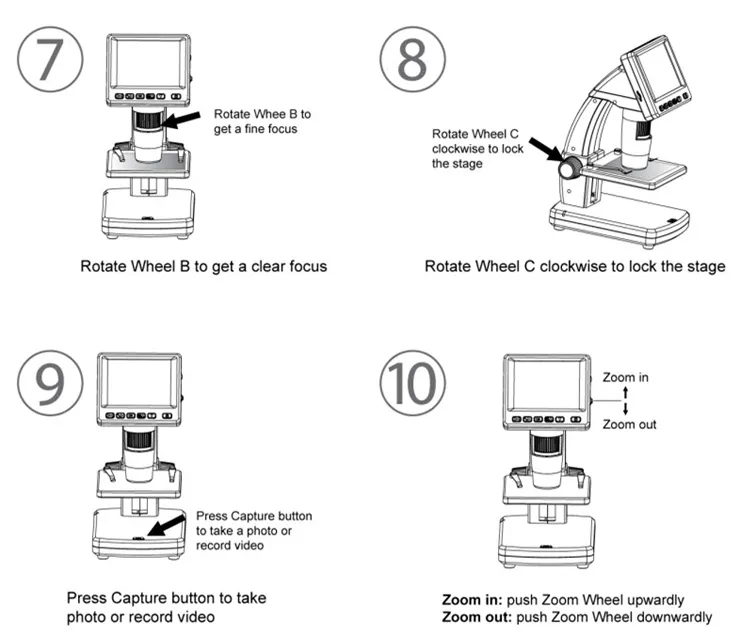

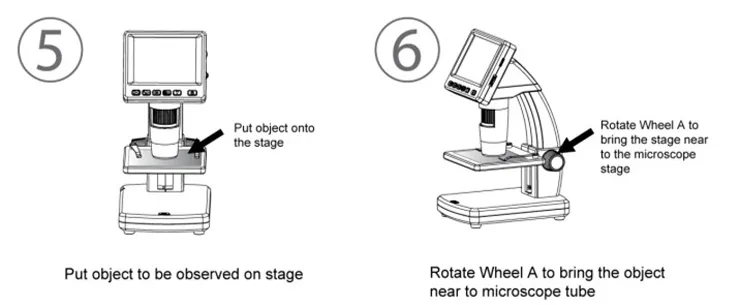

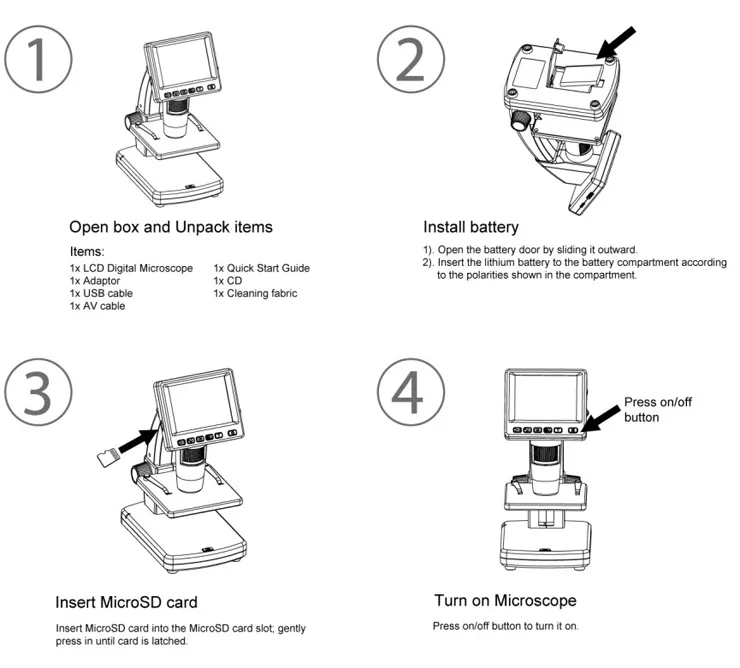

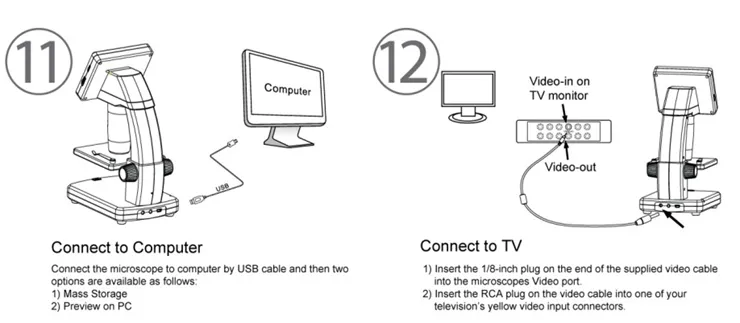

                                                                            LCD Digital Microscope Quick Start Guide


For more complete operating instruction, please see the User's Manual on included CD.
