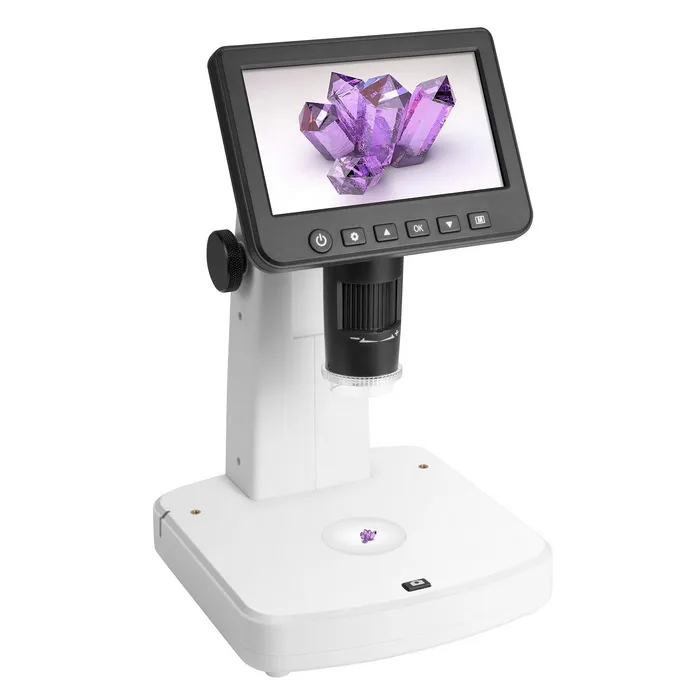

5-inch LCD Digital Microscope with Polarizer
Model No: UM058
* 10-300x, up to 1200x by digital
* 5-inch IPS Panel, 960x540
* 12M photo/1080p video
* Switchable Polarizer
* HDMI output to external monitor
* Measurement by software

The Standalone 5-inch LCD Digital Microscope with Polarizer enables you to observe tiny objects like coins, stamps, fabrics, electronics, PCB circuits and biological specimen slices etc. Its polarizing filter, able to reduce glare, is especially useful for objects with shiny surface like diamond, jewelry metal etc.


Magnification Ratio: 10x to 300x, up to 1200x by digital

LCD Display: 5-inch IPS, 960x540

Photo resolution: 14M/12M/10M/8M/5M

Video resolution: 1080p/720p

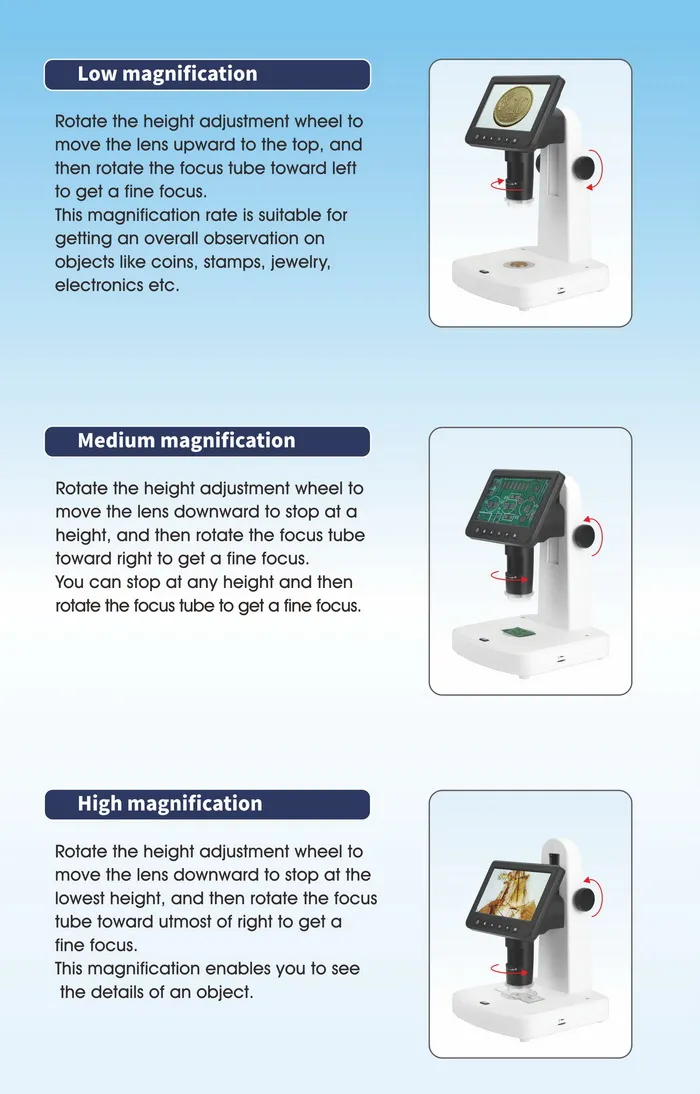

Focus Range: Manual focus from 5mm to70mm

Polarizer: Switchable polarizer

Storage: By Micro-SD card (not included)

Output to external monitor: By HDMI or TV

Powered by: Built-in rechargeable battery & Power adaptor

Light source: LEDs with brightness adjustable

OSD language: English, German, Spanish, French, Russian, Japanese, Chinese etc.

Bundle software: PortableCapture Plus for Windows & Mac

Product Size: 165(L)x158(W)x267(H)mm

Weight: 660g


Package contents:

LCD Microscope

Power adaptor

USB cable/TV cable

Software CD

Calibration chart

User’s manual
