5 inches On-Camera Field Monitor with HDMI input Focus Assist Marker False Color Pixel to Pixel Imag
Model No: M501
* 5" LCD display, 800*480
* HDMI input/output
* Focus Assistance
* False Color
* Exposure
* Marker
* Pixel to Pixel
The MustHD 5-inch On-camera Video-assist Field Monitor for DSLR is designed to help photographers or film makers to get better focus and thus better pictures and videos with DSLR camera!

The MustHD 5-inch On-camera Video-assist Field Monitor for DSLR presents crystal clear image of what you are shooting directly onto a large 800*480 LCD screen, meaning you never have to strain your eyes to see any image again. Ideal for armatures as well as professionals who need to view images all day long! Make focusing, framing your picture and previewing quicker and clearer. Place the 5 inch monitor for your DSLR camera at varied angles without worrying about keeping your eyes level with the miniature in-built camera screen.

What makes the MustHD 5-inch On-camera Video-assist Field Monitor for DSLR better than other similar products in the market are largely from its excellent menu design; custom preset button, knob-control mechanism, unique sun-hood and battery plate. Users can scroll up and down easily to view the menu confirmation, customize regularly-used function to 6 buttons. Users can install/uninstall, open/close the sun-hood easily, so are the battery plate.

This DSLR camera monitor comes with a hot shoe mount and a handy HDMI cable so that you can simply take it out of the box, plug it in and away you go! Producing a fine and clear picture with a bright and full color display! Even when used in the sunlight this DSLR monitor is easy to view, using the sun-hood of unique design (which features easy install/uninstall, open/close). It can get power source by the attachable battery plate or DC-power adaptor (supplied).
5 inches On-Camera Field Monitor with HDMI input Focus Assist Marker False Color Pixel to Pixel Imag

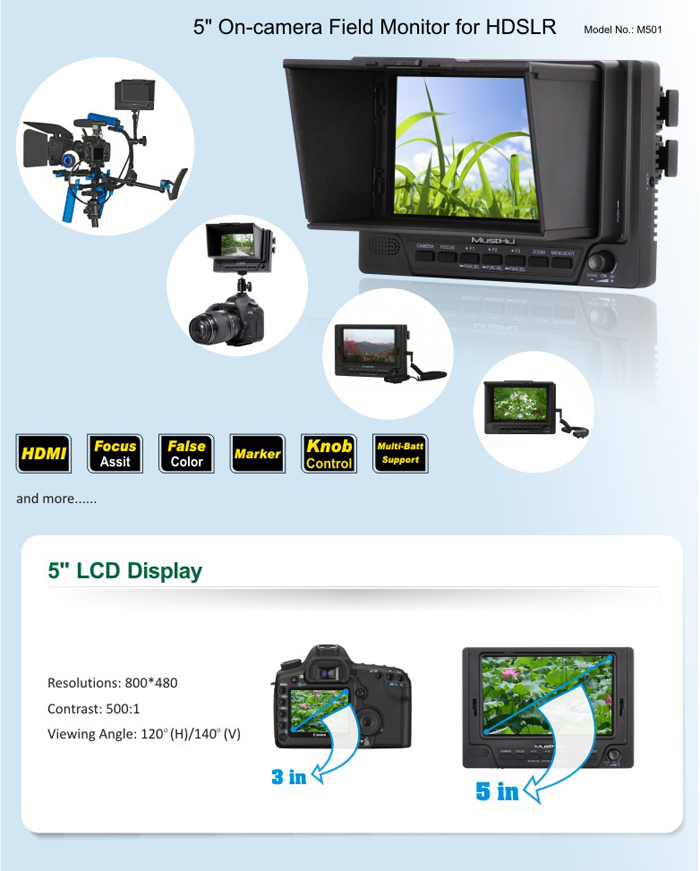

Mustech 5-inch on-camera field monitor-M501 Overview
Mustech 5-inch on-camera field monitor-M501 function details

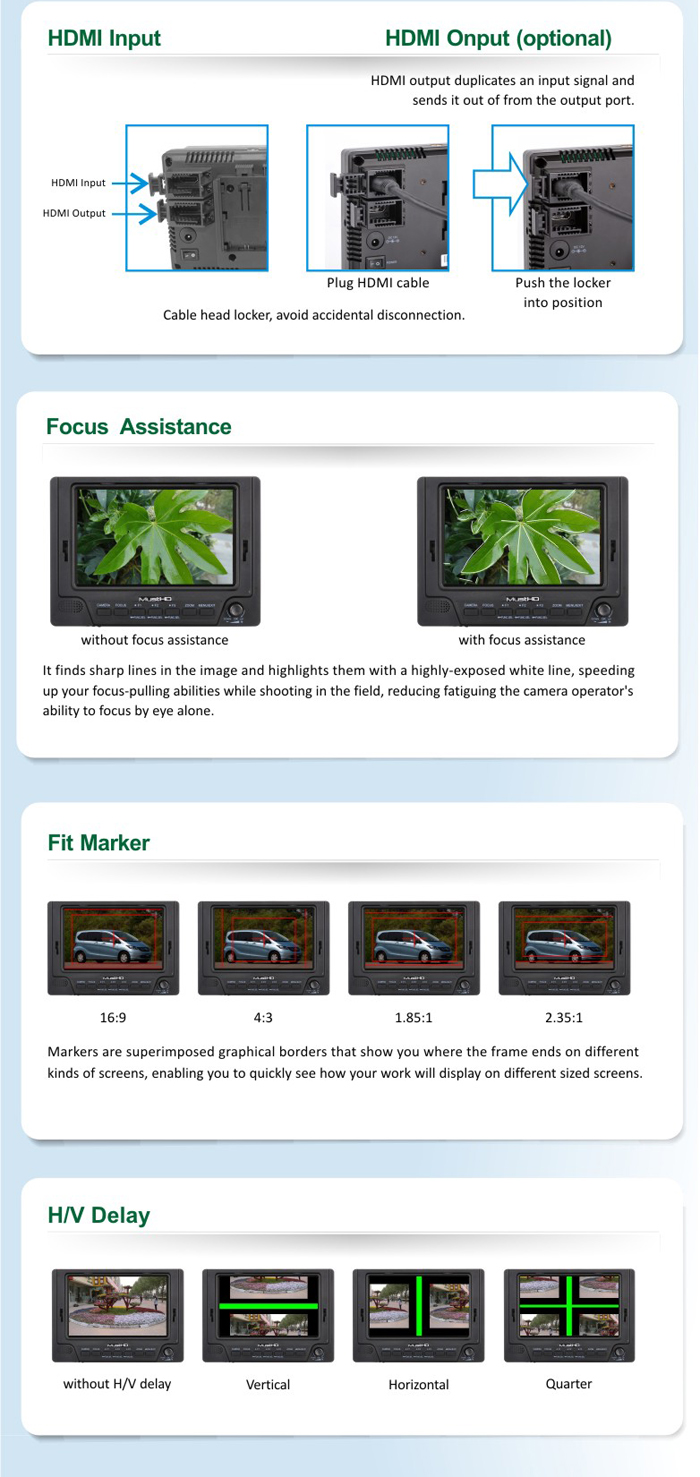

Mustech 5-inch on-camera field monitor-M501 function details 2

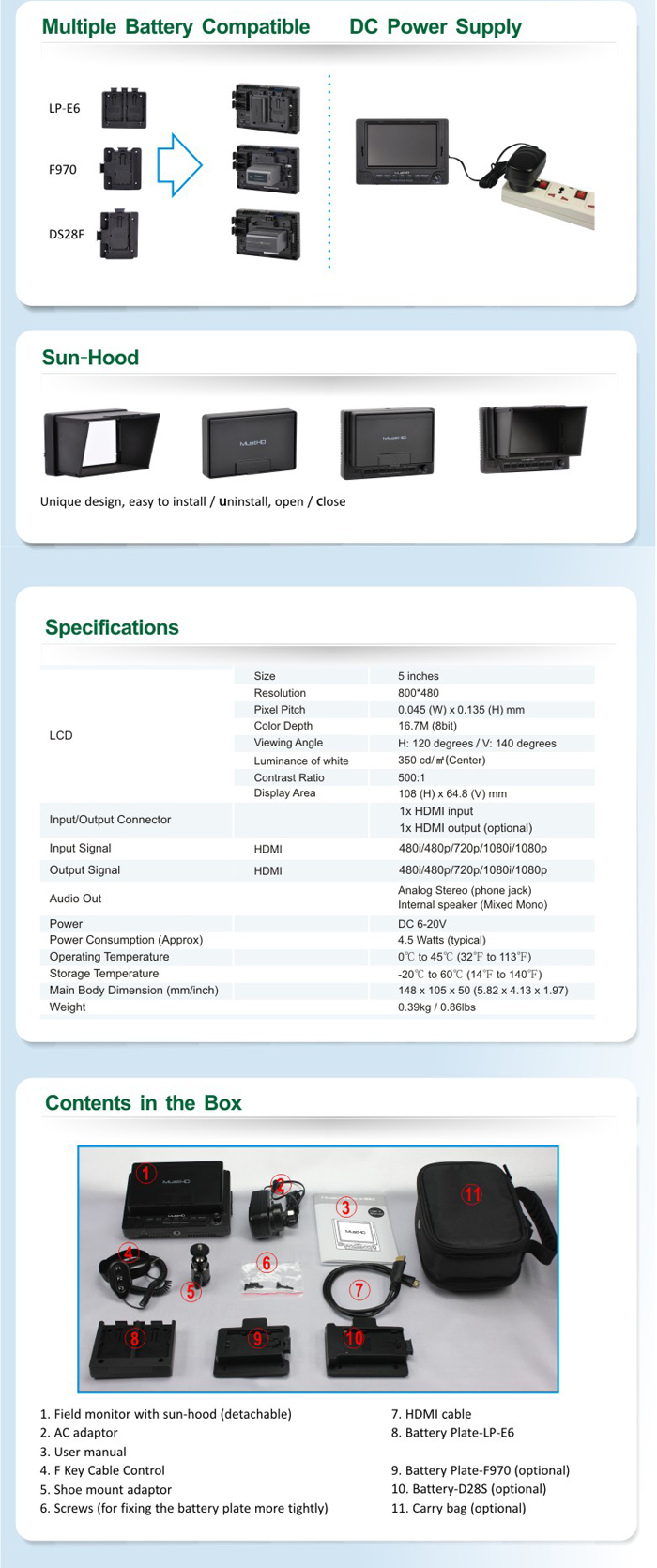

Mustech 5-inch on-camera field monitor-M501 function details 3

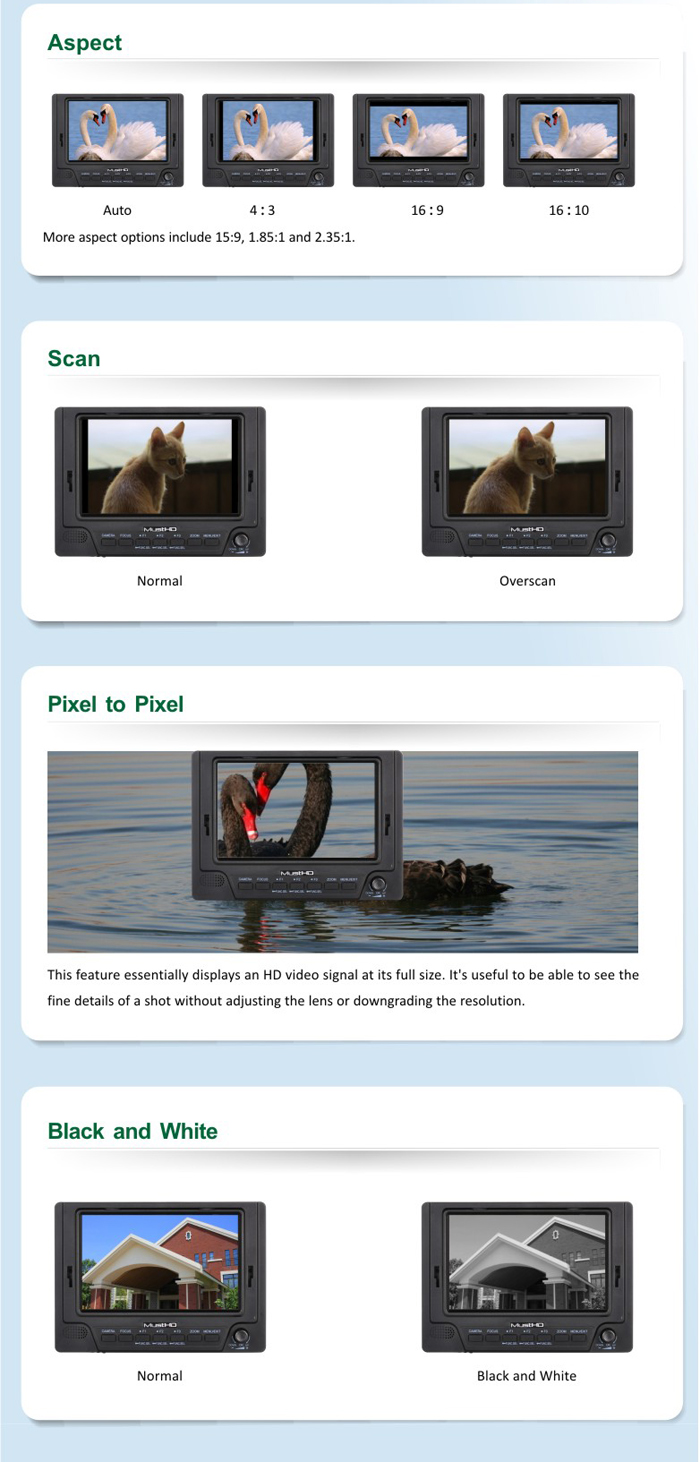

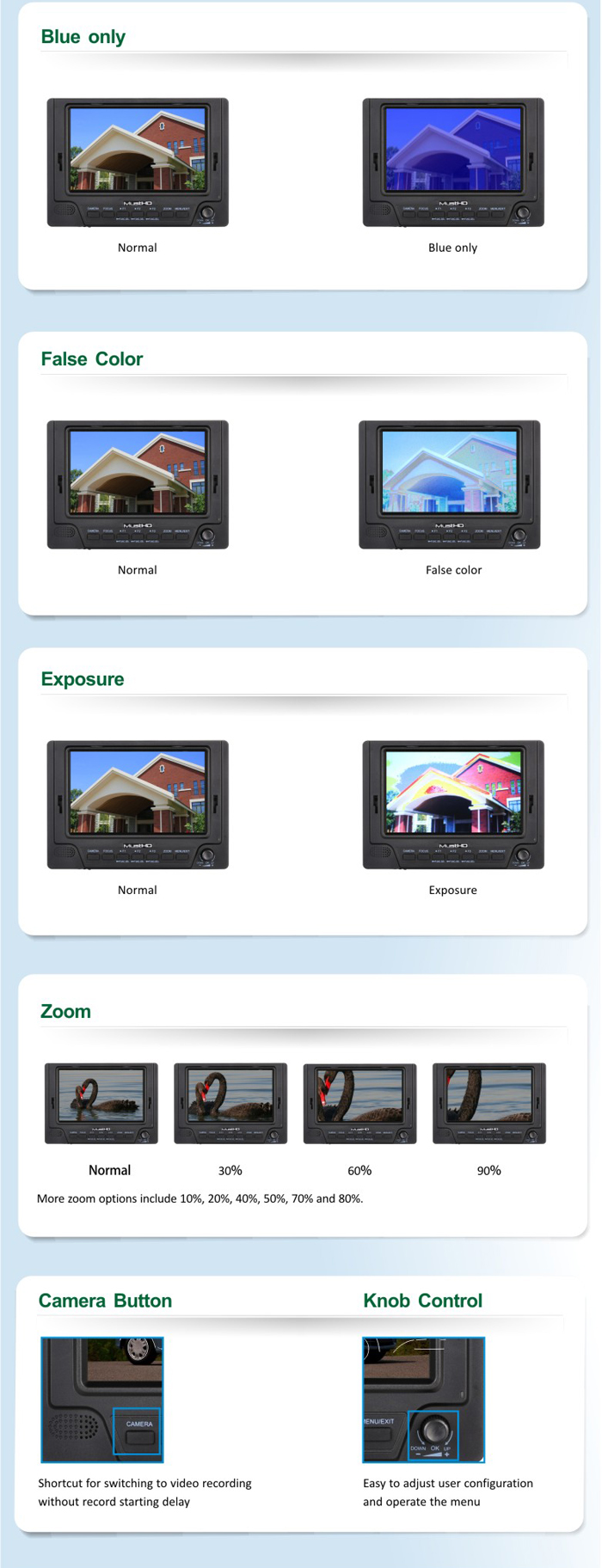

Mustech 5-inch on-camera field monitor-M501 function details 4
LCD Size 5 inches
Resolution 800*480
Pixel Pitch 0.045(W)x0.135(H)mm
Color Depth 16.7M(8bit)
Viewing Angle H: 120 degrees
V: 140 degrees
Luminance
of white
350 cd/㎡(Center)
Contrast Ratio 500:1
Display Area 108 (H) x 64.8 (V)mm
Input/Output Connector 1x HDMI input
1x HDMI output (optional)
Input Signal HDMI 480i/480p/720p/1080i/1080p
Output Signal HDMI 480i/480p/720p/1080i/1080p
Audio Out Analog Stereo(phone jack)
Internal speaker (Mixed Mono)
Power DC 6-20V
Power Consumption (Approx) 4.5 Watts (typical)
Operating Temperature 0℃to 45℃ (32℉ to 113℉)
Storage Temperature -20℃to 60℃ (14℉ to 140℉)
Main Body Dimension (mm/inch) 148x105x50 (5.82x4.13x1.97)
Weight 0.39kg/0.86lbs

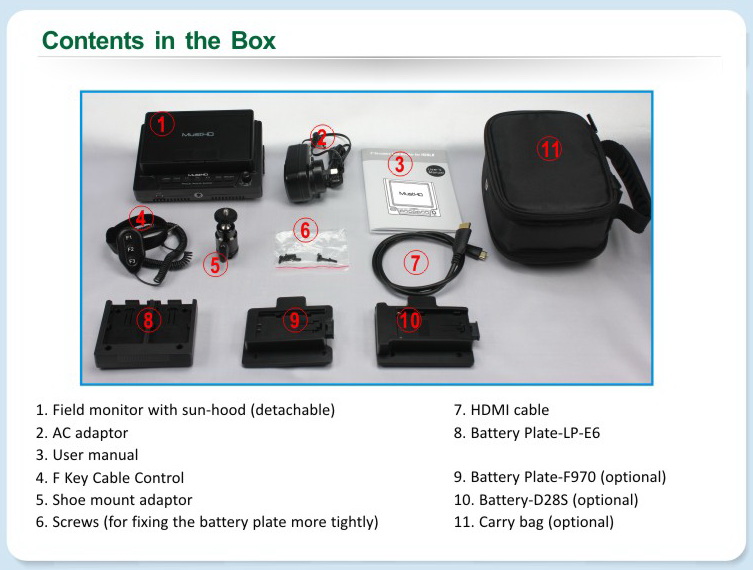

Accessories
1.Field monitor with sun-hood(detachable)
2.AC adaptor
3.User manual
4.F Key Cable Control
5.Shoe mount adaptor
6.Screws(for fixing the battery plate more tightly)
7.HDMI cable
8.Battery Plate-LP-E6
9.Battery Plate-F970(optional)
10.Battery-D28S(optional)
11.Carry bag(optional)
