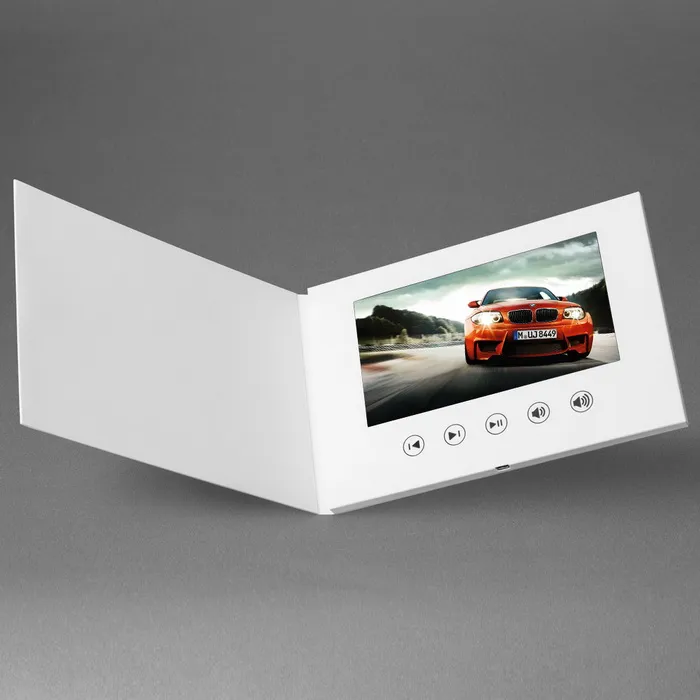

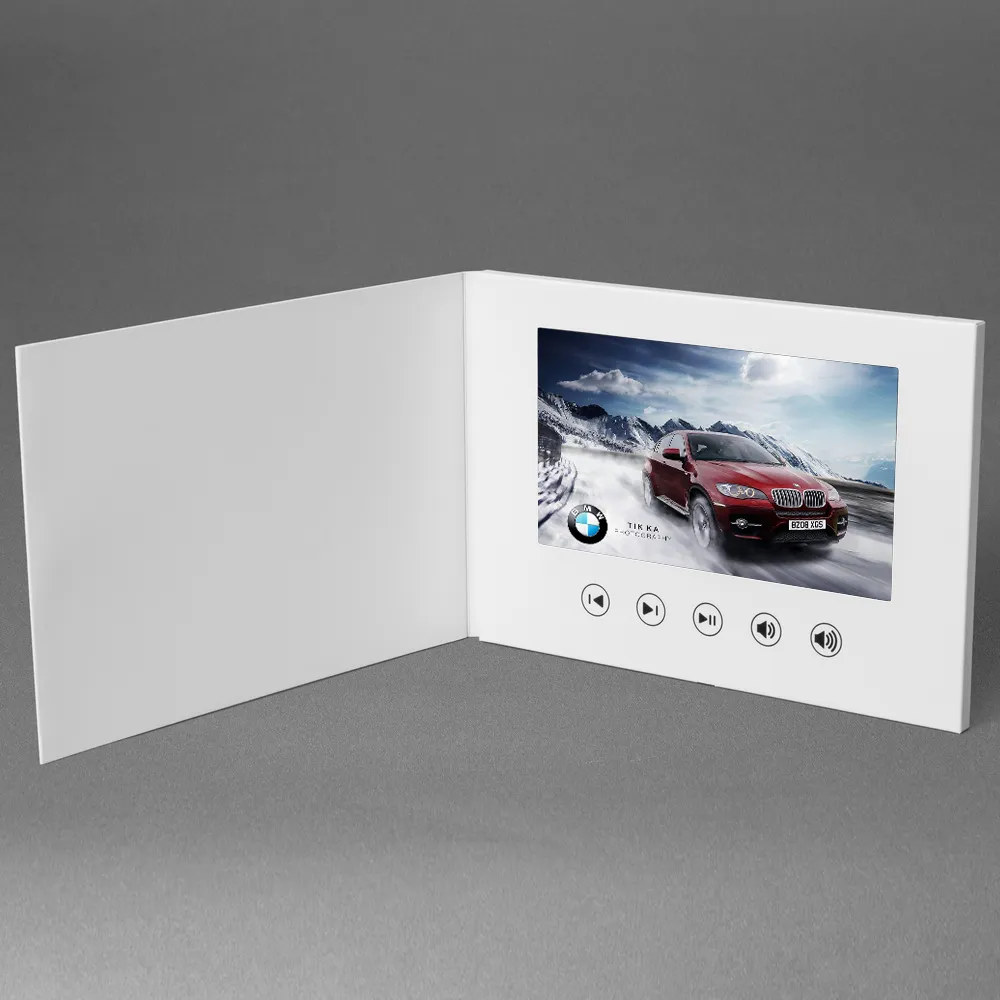

Customized Printing 7-inch LCD Screen Video Brochure for Advertising
Model No: V711
* Video Play
* Memory Storage
* Battery Powered
* Magnet On/Off
* Button Controls
Delivering the best presentation possible without requiring a web browser or video player, Video Brochures are widely used as a marketing tool now. With their simple open and play operation, high memory retention value and plain old "WOW" factor, Video Brochures are making them preferable over print-only brochures.
Our custom print video brochures are available in various LCD screen sizes including 4.3", 5”, 7" and 10".

Video Play: play can be activated by auto start on opening, on/off switch, light sensor, or, motion sensor. Up to 4 hours of video can be stored on a single brochure.

Memory and Video Play Time (estimate and guide only): 128Mb (up to 7min), 256Mb (up to 15min), 512Mb (up to 30min), 1Gb (up to 60min), and so on *** Play time is subject to video compression and format used.



Battery capacity: Lithium Polymer rechargeable 500mAh with 1hour continuous playback. Higher capacity batteries up to 8000mAh are available upon request.



Buttons: on/off, video select, play/pause, next/FF, prev/REW, volume up, volume down. Up to maximum of 10 buttons are possible on a single video brochure.



Standby Screen (Splash): usually a company logo or product shot supplied as a JPEG which will display for 1-2 seconds whilst the video is booting up, referred to as Splash screen, or, the JPEG image can remain on standby until a video button is selected.



How do they work? It’s pretty simple. You open the brochure, and your video comes on. Each video card is capable of holding from 30 seconds up to 8 hours of video. You will be able to customize the size, color, shape, screen size, etc. The design of the brochure is completely up to you (or we can help you too!). Let your imagination go wild because we can handle any size/shape from a box to a folder or even a book!




Item Name   Customized Printing LCD screen video brochure for advertising
Supply Type   OEM/ODM
Display Size   2.4-inch, 4.3-inch, 5-inch, 7-inch, 10-inch
Video format   MP4, 3GP, AVI MOV, ANI, ETC.
Picture format   BMP, JPG, JPEG etc.
Music format   MP3, WMA, PCM etc.
Power on/off   Light sensor, Magnet switch, motion sensor, push buttons
Paper Size   A4, A5 or customized size
Usage   Advertising Brand, Business Gift, Wedding, Invitation, Brand promotion.
Video resolution   HD video maximum 1920*1080 minimum 320*240.

Screen specs:

Screen Size Display Area Screen Ratio Resolution Battery Working time
2.4 Inch TFT LCD  Screen 48mm*36mm 4:3 320*240 320~24000mA >=2hours
4.3 Inch TFT LCD  Screen 94mm*53mm 16:9 480*272 320~24000mA >=2hours
5 Inch TFT LCD Screen 110mm*61mm 16:9 480*272 320~24000mA >=2hours
5 Inch IPS Screen 107mm*64mm 16:9 800*480 320~24000mA >=2hours
7 Inch TFT LCD  Screen 152mm*85mm 16:9 800*480 320~24000mA >=2hours
7 Inch IPS Screen 152mm*85mm 16:9 1024*600 320~24000mA >=2hours
10 Inch TFT LCD  Screen 221mm*124mm 16:9 1024*600 320~24000mA >=2hours
