1.3M 200x USB Digital Microscope UM012A
Model No: UM012A
* 1.3M, up to 2M by interpolation
* Magnifications: 10x - 200x
* Compatible with Windows and Mac
* OEM supported
* 1-year manufacturer warranty

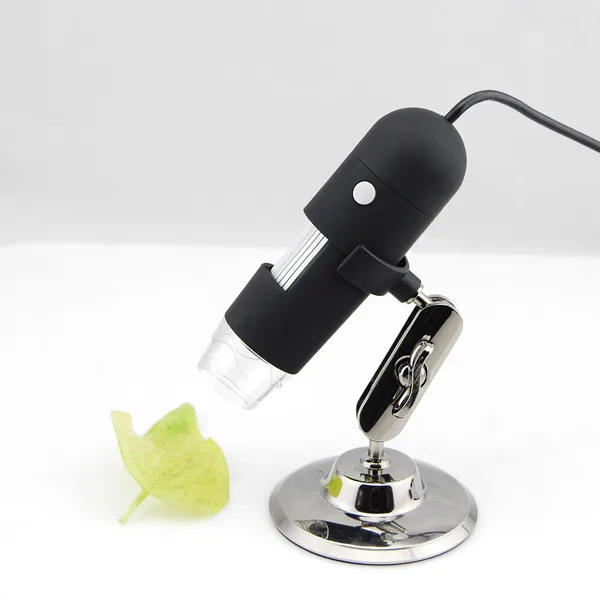

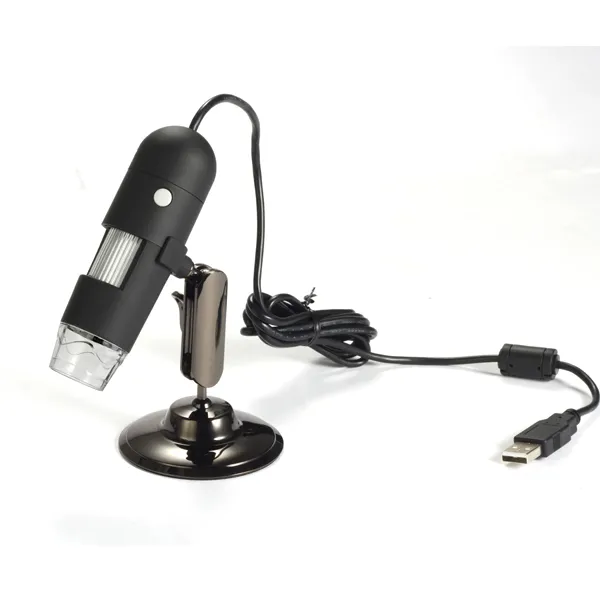

The 1.3M 200x USB digital microscope UM012A is a high-tech while easy to use digital microscope. With this unit you may see a unique & “bigger” world.

It is applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.

Its 1.3M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment. All the excellent features make it a good aid for your daily inspection on tiny objects.
* 1.3M, up to 2M by interpolation

* Magnifications: 10x - 200x

* Compatible with Windows and Mac

* OEM supported

* 1-year manufacturer warranty
Image sensor: 1.3 Mega Pixels (interpolated to 2M)

Focus Range: Manual focus from 10mm to 500mm

Frame Rate: Max 30f/s under 600 Lus Brightness

Magnification Ratio: 10x to 200x

Light source: 8 LED (adjustable by control wheel)

Still capture resolution: 1600x1280 (2M), 1280x1024, 1024x960, 1024x768,
                                            800x600, 640x480, 352x288, 320x240

Video capture resolution: 1600x1280 (2M), 1280x1024, 1024x960,1024x768,
                                                800x600, 640x480, 352x288, 320x240

Video format: AVI

Photo format: JPEG or BMP

PC interface: USB2.0

Power source: 5V DC from USB port

Operation system: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above

OSD language: English, German, Spanish, Korean, French, Russian

Bundle software: MicroCapture

Working temperature: -20℃ ~ +60℃

Size: 110mm (L) x 33mm (R)
