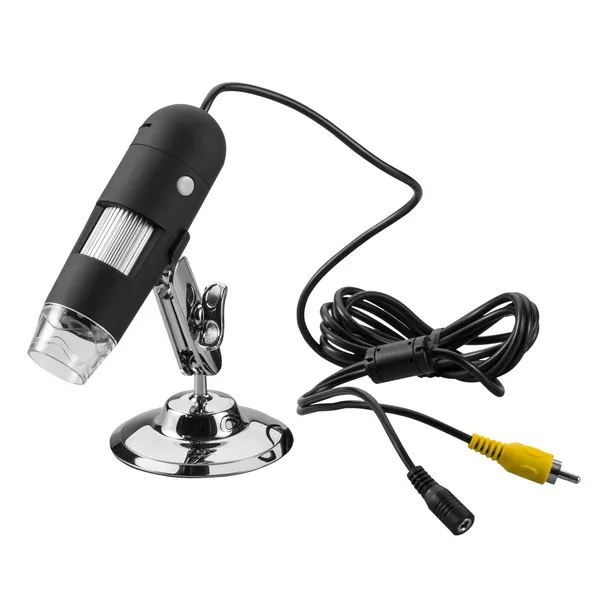

High Speed 200x TV Digital Microscope to any Monitor with Tv-in
Model No: UM012T
* 10x-200 magnifications
* Works with any monitor with video-in
* 300,000 pixels resolution
* 8 LEDs with brightness adjustable
* OEM supported
* 1-year manufacturer warranty
The 200x TV Digital Microscope is a high-tech while easy to use Digital Microscope. It is high speed with 200x magnification that brings you with tremendous details.

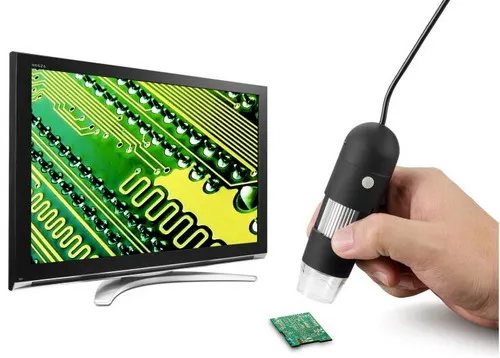

It is applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.

Its quality image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.

Just Plug and Play, no need for software installation, it is a good aid for your daily inspection on tiny objects.
With this unit you may see a unique & “bigger” world.

* 10x-200x magnifications

* Works with any monitor with video-in

* 300,000 pixels resolution

* 8 LEDs with brightness adjustable

* OEM supported

* 1-year manufacturer warranty




Lens: Dual Axis 27X & 100X microscope lens

Frame frequency: 60fps

Focus Range: Manual focus from 10mm to infinity

Magnification Ratio: 10X to 200X

White balance: Auto

Color saturation: Auto

Light source: 8 LEDs

Sensitivity: 2.0V/lux-sec (550nm)

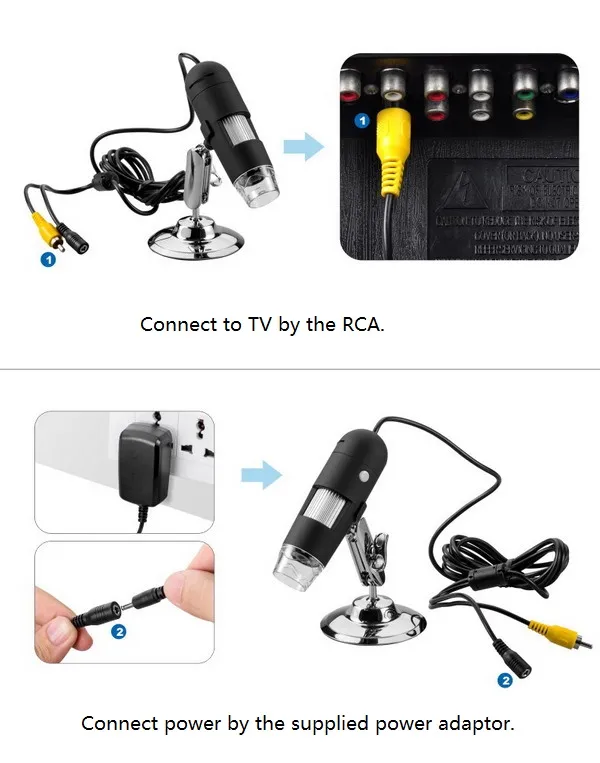

TV interface: AV

Power source: 5V DC from adaptor

Working temperature: -20℃ ~ +60℃

Size: 110mm (L) x 33mm (R)
