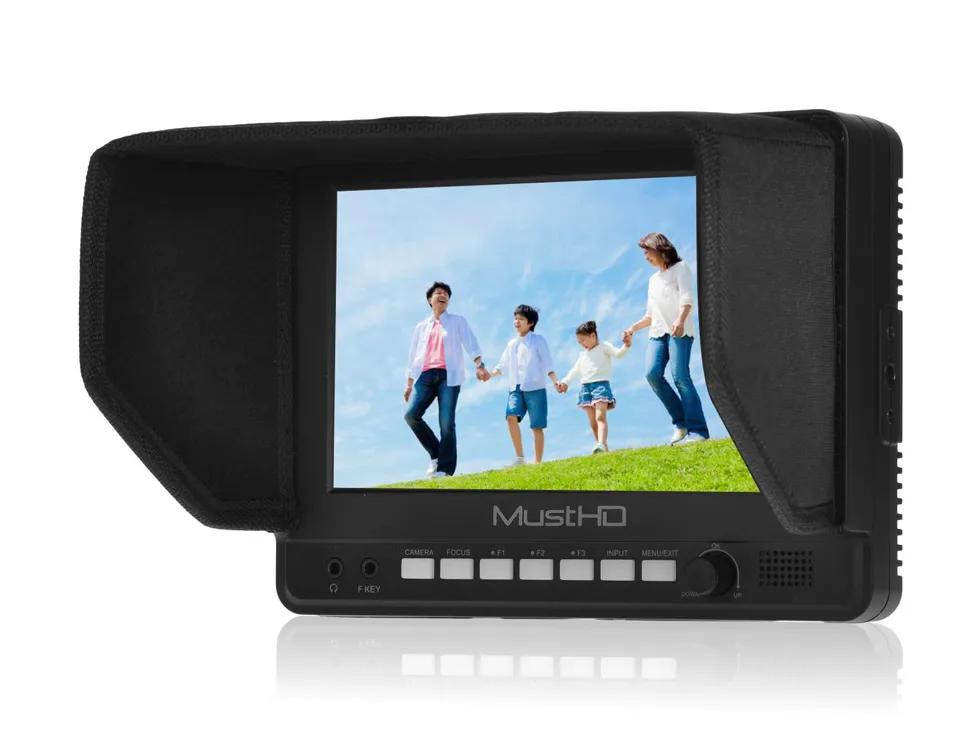

7-inch MustHD 1024x600 HDMI Affordable On-camera Field Monitor M700H Focus Assist with Color Peaking
Model No: M700H
* 7" LCD 1024*600, support up to 1920x1080
* HDMI input Only
* Component(YPbPr)
* Focus Assistance with Color Peaking (RGB)
* False Color
* Exposure
* Aspect
* Over-scan
* Pixel to Pixel
* Black and White
* Zoom
* HDMI input Only
* Component(YPbPr)
* Focus Assistance with Color Peaking (RGB)
* False Color
* Exposure
* Aspect
* Over-scan
* Pixel to Pixel
* Black and White
* Zoom
The M700H is designed for the video enthusiast who needs an affordable field monitor.The M700H panel has vibrant colors and a wide viewing angle.To help insure correct focus and exposure it also has color peaking and false color functions. Several other features are a zoom function from 10% to 90% and dis-play marker to show aspect ratios.
HDMI Input/output and Component(YPbPr) Input
Optional Battery Plates
It can be powered by batteries or AC adapter. It comes standard with a F970 battery plate and a AC adapter. Optional LP-E6 or D28S battery plates are available.
Sunhood
Its de-tachable folding sun-hood helps when shooting in bright locations and also protects the screen in transit.
External Self-define Button Remote
Another example of how MustHD helps make your work easier is the programmable wired 3 button remote. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap al-lows the remote to be attached to a tripod or frame.
Speaker and Audio Out
User can check the audio of the video by the speaker or audio out.
HDMI Input/output and Component(YPbPr) Input
Optional Battery Plates
It can be powered by batteries or AC adapter. It comes standard with a F970 battery plate and a AC adapter. Optional LP-E6 or D28S battery plates are available.
Sunhood
Its de-tachable folding sun-hood helps when shooting in bright locations and also protects the screen in transit.
External Self-define Button Remote
Another example of how MustHD helps make your work easier is the programmable wired 3 button remote. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap al-lows the remote to be attached to a tripod or frame.
Speaker and Audio Out
User can check the audio of the video by the speaker or audio out.
Specifications:
| LCD | Size | 7 inches |
| Resolution | 1024*600, support up to 1920x1080 | |
| Pixel Pitch | 0.15（W）x0.15(H)mm | |
| Color Depth | 16.7M (8bit) | |
| Viewing Angle | H: 140 degrees ; V: 110 degrees | |
| Luminance | 250 cd/㎡(Center) | |
| Contrast Ratio | 500:1 | |
| Display Area | 153.6 (H) x 90 (V)mm | |
| Input Connector | 3xBNC | Analog Input |
| 1xHDMI | HDMI Input | |
| Input Signal | Analog | Audio, YPbPr |
| HDMI | 480i/480p576i/576p/720p/1080i/1080p | |
| Audio Out |
Analog Stereo(phone jack) Internal speaker (Mixed Mono) |
|
| Power | DC 6-20V | |
| Power Consumption (Approx) | < 8 Watts (typical) | |
| Operating Temperature | 0℃to 45℃ (32℉ to 113℉) | |
| Storage Temperature | -20℃to 60℃ (14℉ to 140℉) | |
| Main Body Dimension (mm) | 198x147.5x33.6 mm | |
| Weight | 0.48kg | |
| Accessories |
1. Sun-hood (detachable) 2. AC adaptor (US/EU/UK/AU) 3. User manual 4. External Self-define function button plate 5. Shoe mount adaptor 6. Screws(for fixing the battery plate more tightly) 7. HDMI cable 8. Battery Plate-F970 9. Battery Plate-LP-E6(optional) 10. Battery-D28S(optional) 11. Carrying bag(optional) |
|
