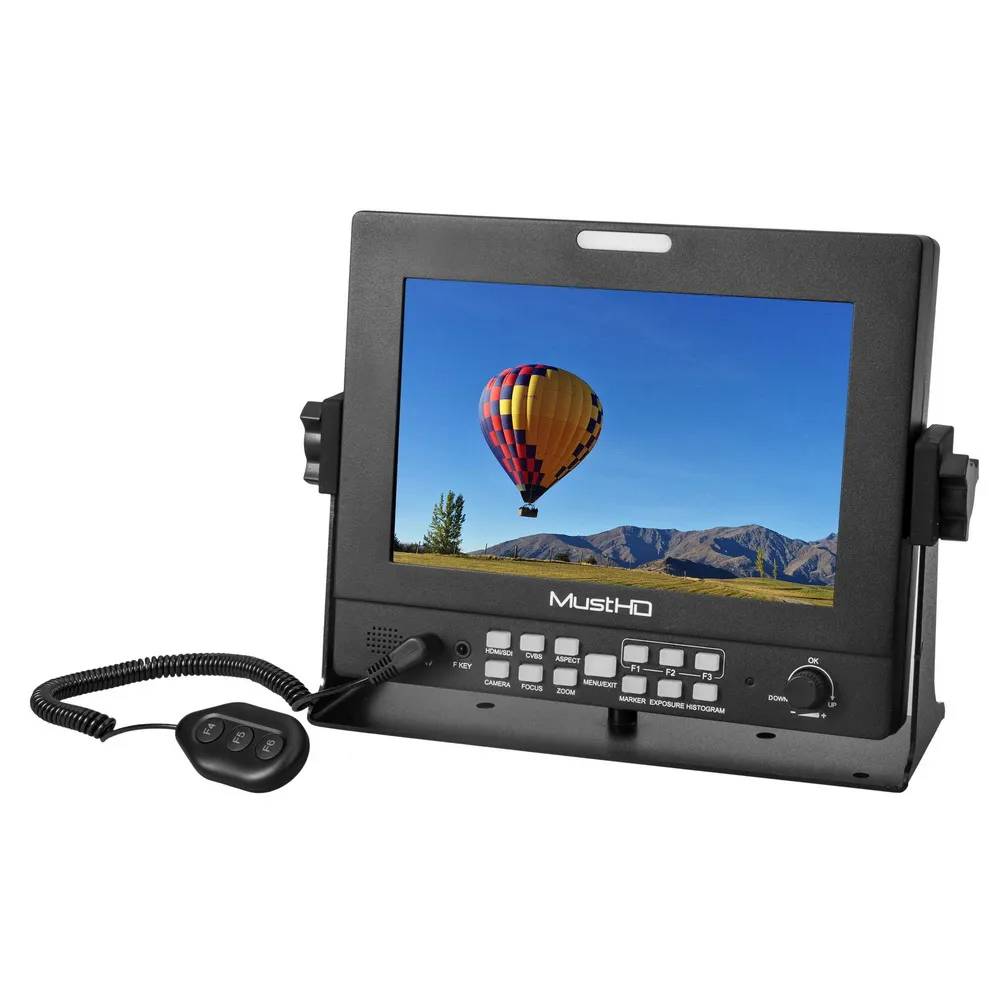

MustHD 7" Hyper-Brite™ 2200-nit High Brightness 1920x1200 Monitor with 3G-SDI/HDMI Input/Output
Model No: M703S
• 1920 x 1200 7" IPS Panel
• Luminance of 2200cd/m² (2,200 nits)
• HDMI & Composite inputs
• 4K/60Hz 3G-SDI/HDMI Input/Loop-through Support
• 4K Support with support under the 4K
• Focus Assist / Peaking Color Rgb
• False Color for Under/Over Luminance Warning
• Histogram and Zebra
• Pixel-to-Pixel
• Volume Bar
• R/G/B/Gray-only display
• H/V Mirror
• 3 Button Programmable Wired Remote
• Four 1/4"-20 Thread Mounting Holes
• Speaker & Headphone Output
• Tally
• Luminance of 2200cd/m² (2,200 nits)
• HDMI & Composite inputs
• 4K/60Hz 3G-SDI/HDMI Input/Loop-through Support
• 4K Support with support under the 4K
• Focus Assist / Peaking Color Rgb
• False Color for Under/Over Luminance Warning
• Histogram and Zebra
• Pixel-to-Pixel
• Volume Bar
• R/G/B/Gray-only display
• H/V Mirror
• 3 Button Programmable Wired Remote
• Four 1/4"-20 Thread Mounting Holes
• Speaker & Headphone Output
• Tally
This top-of-the-line, powerful, and affordable 3G-SDI M703S field monitor was designed for the professional cinematographer shooting in the field. The 7" 1920x1200 Hyper-Brite™ IPS panel has an industry-leading LED backlight capable of 2200cd/m² (2,200 nits) output. The brightness of the display enables viewing in sunlight without the need for a sun hood.
The 3G-SDI and HDMI inputs can handle up to a 4K/60Hz signal and the loop-through output enables the use of external recording devices for maximum capture flexibility.
It is constructed with aluminum making it durable and fast cooling. It ensures the monitor's reliability and longevity.
Power Supply
The programmable wired 3 button remote helps make your work easier. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap allows the remote to be attached to a tripod or frame.
The 3G-SDI and HDMI inputs can handle up to a 4K/60Hz signal and the loop-through output enables the use of external recording devices for maximum capture flexibility.
It is constructed with aluminum making it durable and fast cooling. It ensures the monitor's reliability and longevity.
Power Supply
The programmable wired 3 button remote helps make your work easier. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap allows the remote to be attached to a tripod or frame.
| 1 | Speaker | 11 | Fit Marker |
| 2 | Earphone Jack | 12 | Self-define function Key#1 |
| 3 | Wired Remote | 13 | Exposure |
| 4 | Choose HDMI/3G-SDI as input Source | 14 | Self-define function Key#2 |
| 5 | Camera Mode | 15 | Histogram |
| 6 | Choose Analogue as input Source | 16 | Self-define function Key#3 |
| 7 | Focus Assist | 17 | Knob(Up/Down/Confirm) |
| 8 | Aspect Ratio | 18 | 1/4"-20 mounting hole |
| 9 | Zoom | 19 | Tally indicator |
| 10 | Menu/Exit |
| 20 | HDMI input | 26 | Tally indicator |
| 21 | HDMI output | 27 | Battery plate fixing hole |
| 22 | 3G-SDI Input | 28 | Tally Power Input |
| 23 | CVBS Input | 29 | Power On/Off |
| 24 | Audio Input | 30 | DC 12V Power Input |
| 25 | 3G-SDI Output |
Specifications:
| LCD | Size | 7 inches, IPS panel |
| Resolution | 1920*1200 Native | |
| Pixel Pitch | 0.078（W）x0.078(H)mm | |
| Viewing Angle | H: 178 degrees ; V: 178 degrees | |
| Luminance | 2200 cd/㎡ | |
| Contrast Ratio | 1200:1 | |
| Display Area | 151.2 (H) x 94.5(W)mm | |
| Input | 1x3G-SDI | 480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz |
| 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz | |
| 1xComposite | CVBS | |
| 1xLAN(RJ45) | TALLY | |
| Output | 1x3G-SDI | 480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz |
| 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz | |
| Audio In/Out |
Analog Stereo(phone jack) Internal speaker (Mixed Mono) |
|
| Power | DC 12-20V | |
| Power Consumption (Approx) | < 20W | |
| Operating Temperature | 0℃to 45℃ (32℉ to 113℉) | |
| Storage Temperature | -20℃to 60℃ (14℉ to 140℉) | |
| Main Body Dimension (mm/inch) | 194x160x35.5 (7.6x6.3x1.4) | |
| Weight | 840g | |
| Accessories |
1. DC Power adaptor (US/EU/UK/AU) 2. User manual 3. Programmable Wired Remote 4. Screws(for fixing the battery plate more tightly) 5. HDMI cable 6. V-mount Battery Plate(optional) 7. Anton Mount Battery Plate (optional) 8. Carrying bag(optional) |
|
